WFS Undertile 200W Heating Loose Cable WiFi Thermostat Kit

£137.99£415.99

200w/m2 heating kits can be used in all areas, especially in areas of high heat loss such as un-insulated conservatories. This heating cable heats up 25% faster than 150w/m2 and can only be used under tiles.

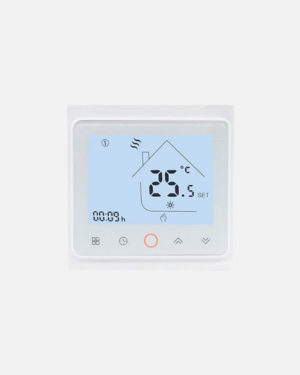

Each heating kit comes supplied with your choice of thermostat, Standard programmable touch screen thermostat or our Smart wi fi thermostat which can be controlled from your smart speaker or app from anywhere. Thermostats available in Black or White.

Free delivery within the UK

  • Fast dispatch within 1-2 days
  • We provide an excellent customer care service
We Accept Payments Through PayPal

Undertile 200W Heating Loose Cable WiFi Thermostat Kit

All 3mm cable systems utilise our insulated, twisted dual core heating element, protected by an armour braid and our advanced tough heat resistant fluropolymer outer jacket. All WFS cables have a high IP rating of 67 which is suitable for use in wet areas and in conjunction with wet room systems. WFS heating cables come with only one power lead wire making it easy to install without raising the floor level.

The ultra-low profile of our heating cables enables them to be installed in a matter of hours without raising floor levels. The heating elements are simply fixed to the sub floor and tiled straight over for a perfect heated finish every time.

All WFS cables are manufactured in Sweden, world leaders in underfloor heating process and quality. WFS Cable manufacture complies and surpasses all UK and European standards and requirements.

Compatible with

Technical Specifications

Operating voltage

220-240V; 50Hz

IP Rating

67

Inner insulation
Teflon

Cold tail length

(connection lead) 3m

Outer insulation

Advanced fluoropolymer

Output rating

120W/sqm – 150W/sqm

Earth Protection

Armour braid

Sizing Guide

Size in m2

Length in metres

Wattage

Amps

Resistance Range

1.0-1.2

10m

150 W

0.6

346-422 Ω

1.3-1.6

17.5m

200 W

0.8

259-317 Ω

2.0-2.6

24m

310 W

1.3

166-204 Ω

2.7-3.4

30m

410 W

1.7

126-154 Ω

3.3-4.2

35m

500 W

2.1

104-127 Ω

4.6-5.8

51m

690 W

2.9

75-91 Ω

5.6-7.0

64m

840 W

3.5

61-75 Ω

6.5-8.2

73m

980 W

4.1

52-64 Ω

6.6-8.3

83m

1000 W

4.2

51-63 Ω

8.6-10.8

97m

1290 W

5.4

40-48 Ω

10.6-13.3

119m

1590 W

6.6

32-40 Ω

12.0-15.0

131m

1800 W

7.5

29-35 Ω

13.8-17.3

160m

2070 W

8.6

24-30 Ω
